Wallbox eMH2

The future
in a box

Our smart all-rounder with billing function for domestic and commercial applications

Frontansicht Wallbox eMH2 mit 2 Deko-Ovalen mit Beerenzweig und Frau | ABL eMobility

Wallbox eMH2

The future
in a box

Our smart all-rounder with billing function for domestic and commercial applications

The smart all-rounder with billing function, load management and remote software updating

The Wallbox eMH2 is the ideal solution for charging your private or company vehicle in your own garage, or as a multiple unit installation on company or hotel parking lots.

Thanks to two integrated energy meters, loads can be controlled and, in conjunction with a backend, billing according to kWh can be carried out accurately.

Wallbox eMH2 - Quick Facts

Preconfigured and ready to install

Suitable for Controller-Extender multiple unit installations

Elegant design

Energy consumption display at any time

Weatherproof

Integrated temperature monitoring

Lookbook

Wallbox eMH2 in private carport

Wallbox eMH2 in private carport

Wallbox eMH2 in private carport

Wallbox eMH2 in private carport

Wallbox eMH2 in private carport

Wallbox eMH2 in private carport

Wallbox eMH2 in private carport

Wallbox eMH2 in private carport

Wallbox eMH2 in private carport

Wallbox eMH2 in private carport

Wallbox eMH2 in private carport

Wallbox eMH2 in private carport

Technical data

Wallbox eMH2 with charging socket

eMH2

with charging socket

Wallbox eMH2 with charging cable

eMH2

with charging cable

All Wallboxes eMH2 with:

RFID

RFID radio frequency identification device.
Access control using contactless transponder cards.

Acces control only possible in conjunction with a backend.

Energy meter

Energy meter. Captures the energy consumption of a charging point in order to provide the data to the backend for accounting purposes.

DC residual current monitoring & RCCB type A

The combination of DC fault current detection module and Type A RCCB provides a complete solution. This makes Type B or Type EV RCCBs redundant. If a DC fault current is detected in the charging circuit, charging is interrupted for 30 seconds. At the end of this period, the Wallbox restarts automatically.

Phase current measurement

The integrated phase current measurement module detects asymmetries between individual phases in all Wallboxes connected to 3-phase power.

Welding Detection

Welding detection is covered by hardware technology. The residual current circuit breaker (RCCB) is tripped remotely if a contactor weld occurs.

Integrated temperature monitoring

Integrated temperature monitoring protects the eMH1 Wallbox from overheating. Should the temperature exceed the limit, it reduces the charging output of the Wallbox or switches it off completely. If the temperature drops again, the eMH2 Wallbox automatically switches back to full charging output.

Adjustable charging current via configuration software

The charging current range can be selected in 1 A increments via software.

Charging capacity 22 kW

All eMH2 Wallboxes have a standard charging output of 22 kW.


WALLBOX eMH2

For back end and load management applications

 ControllerExtender
Back end application OCPP* yes yes yes yes
Charging cable type 2 (approx. 6 m)   yes   yes
Charging socket type 2 yes   Yes
Item No. 2W2240

Data Sheet
PDF
2W2241

Data Sheet
PDF
2W2230**

Data Sheet
PDF
2W2231**

Data Sheet
PDF

*  The Integration in the client's preferred back end incurs additional costs. The controller wallbox requires a good mobile connection to communicate with the backend.
** The wallbox can also be operated individually without back end by a reconfiguration. This requires the ID Tag RFID user cards available as accessories.

Select your own backend

With ABL and reev, switching to electromobility is a cinch! reev is offering the first simple, complete charging infrastructure package. You have a choice between Basic and Pro. How can you order your backend solution? It's very simple: Add the letter B or P to your model number. Your eMH2 Wallbox will be delivered preconfigured and including the reev backend.

Example: 2W2240P for the eMH2 Wallbox with reev Pro.

Basic (B)

reev Basic enables future-proof operation, regular software updates as well as flexible user and RFID management.

Pro (P)

reev Pro enables future-proof operation, regular software updates as well as easy monitoring and management for automated monthly accounting of employees, customers and guests.

Accessories

Pole POLEMH2 for all wallboxes eMH2

Pole

Powder-coated metal pole with LED lights and twilight sensors for all wallboxes eMH2

Prod. No. POLEMH2
Weather protection roof WPR12 for all wallboxes eMH1/eMH2

Weather protection roof

Weather protection roof for mounting on wall or pole POLEMH1 / POLEMH2

Prod. No. WPR12
Charging cable holder for all wallboxes eMH1/eMH2/eMH3

Charging cable holder

Type 2 charging plug attachment and cable holder for all wallboxes eMH1, eMH2 and eMH3

Prod. No. CABHOLD
  • Charging cable type 2
  • Charging cable type 2 detail

Charging cable type 2

In acc. with IEC 62196-2

32 A 240/415 V AC - 3 ph
Length approx. 4 m Splash-proof IP44

Prod. No. LAK32A3
  • Charging cable type 2
  • Charging cable type 2 detail

Charging cable type 2

In acc. with IEC 62196-2

20 A 240/415 V AC - 3 ph
Length approx. 7 m splash-proof IP44

Prod. No. LAKC222
  • Adapter cable type 2 - type 1
  • Adapter cable type 2 - type 1 detail

Adapter cable type 2 - type 1

In acc. with IEC 62196-2

32 A 230 V AC - 1 ph
Length approx. 4 m Splash-proof IP44

Prod. No. LAKK2K1
LTE accessory package

LTE accessory package

With this accessory package, a wireless connection can be retrofitted
between a controller wallbox of the type eMH2/eMH3
or an external control center 1V0001/1V0002 and a backend.

Prod. No. E3BLTE1
WiFi accessory package

WiFi accessory package

This accessory package can be used to establish a wireless connection
between a controller charging station from ABL and an existing
existing WiFi network can be retrofitted.

Prod. No. E3BWLAN
Configuration Cable

Configuration Cable

All ABL charging stations can be configured with the Configuration Cable. Necessary for the configuration of single charging stations as well as controller-extender systems. The Configuration Cable is used to connect the PC to any ABL charging station

Discover eMH2

Mounting and Operating Manual eMH2

A manual with detailed illustrations to guide the intuitive installation and operation of the eMH2 Wallbox.

Download

Mounting and Operating Manual eMH2

Mounting and Operating Manual eMH2

A manual with detailed illustrations to guide the intuitive installation and operation of the eMH2 Wallbox.

Download

Compliant with the German calibration law with ABL

ABL receives the type examination certificate from the VDE for its entire family of eMH3 Wallboxes.

Read more

Wallbox eMH1 - ADAC test winner

"Because the first electric car doesn't necessarily have to be the last, we generally recommend buying a wallbox that can be used universally. The best choice is a 3-phase 11 kW wallbox, like the one from the test winner ABL".

Read more

Compliant with the German calibration law with ABL

ABL receives the type examination certificate from the VDE for its entire family of eMH3 Wallboxes.

Read more

Wallbox eMH1 - ADAC test winner

"Because the first electric car doesn't necessarily have to be the last, we generally recommend buying a wallbox that can be used universally. The best choice is a 3-phase 11 kW wallbox, like the one from the test winner ABL".

Read more

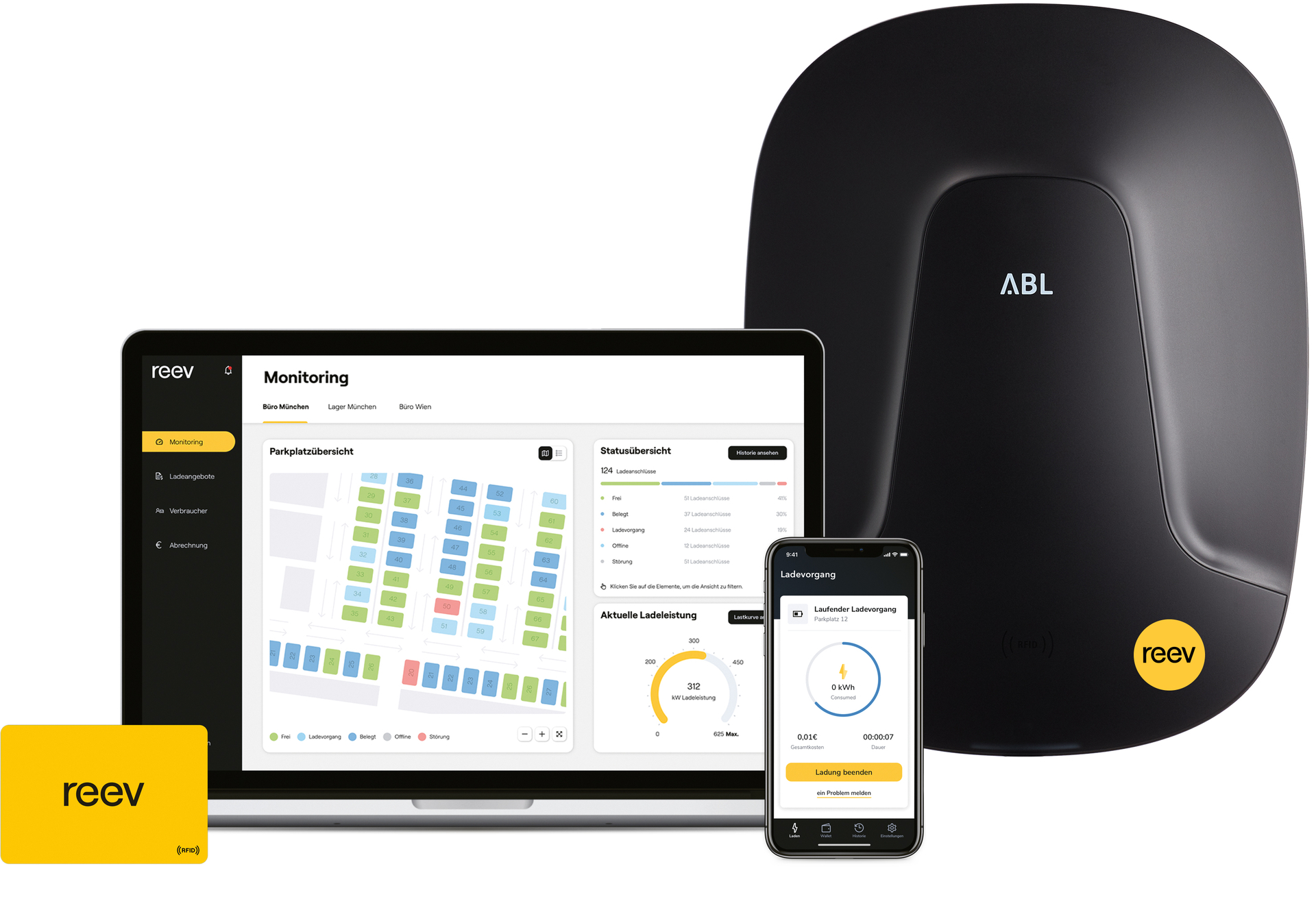

Intelligent backend for your Wallbox eMH2
