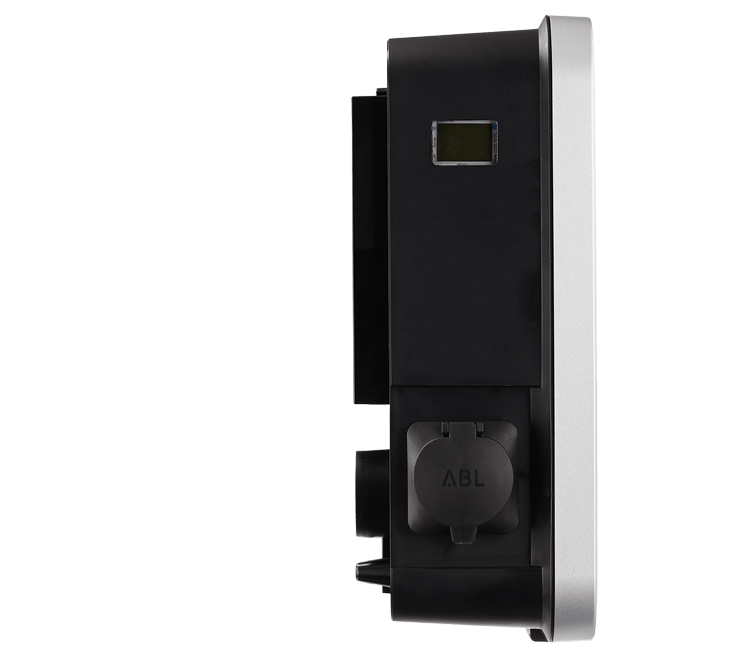

  • Wallbox eMH3 Ansicht 5 Seite rechts mit Steckdose und Display | ABL eMobility
  • Wallbox eMH3 Ansicht 4 Seite rechts mit Steckdose und Display | ABL eMobility
  • Wallbox eMH3 Ansicht 3 Seite rechts mit Steckdose und Display | ABL eMobility

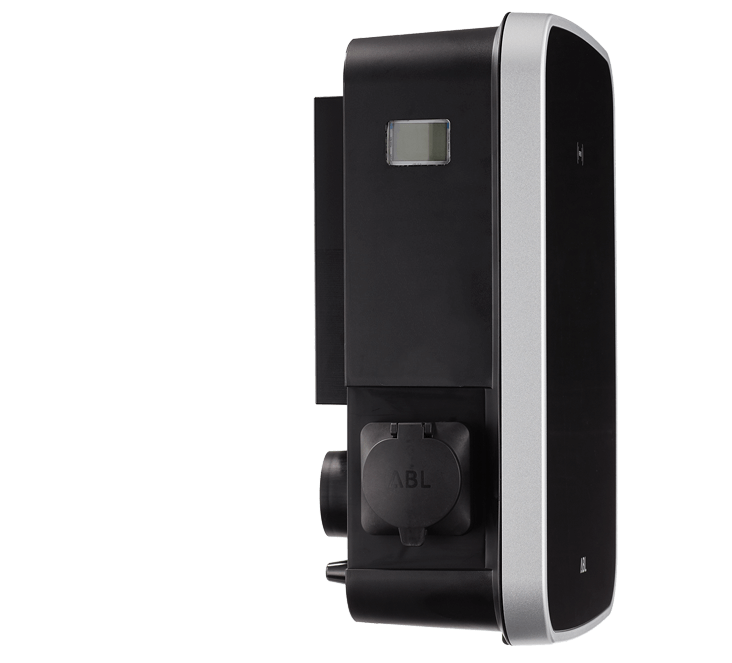

  • Wallbox eMH3 Ansicht 2 Seite rechts mit Steckdose und Display | ABL eMobility

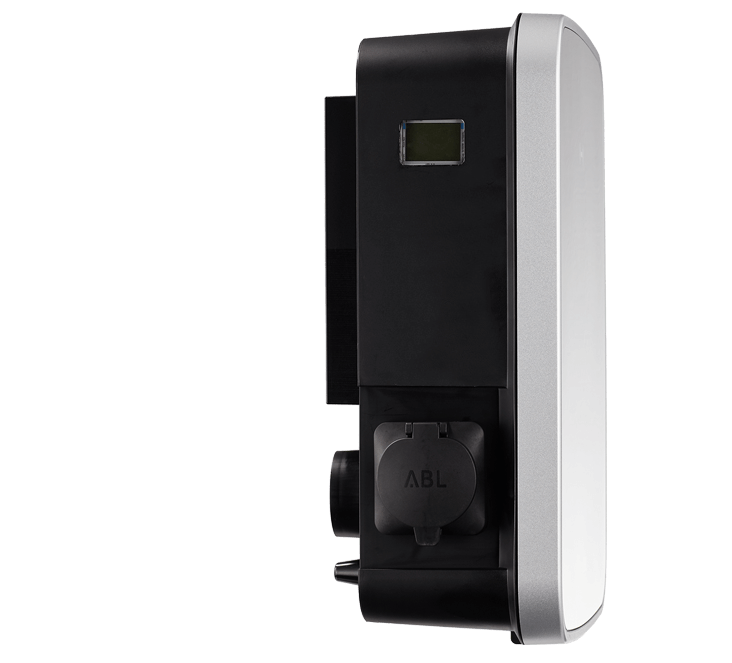

  • Wallbox eMH3 Ansicht 1 Seite rechts mit Steckdose und Display | ABL eMobility

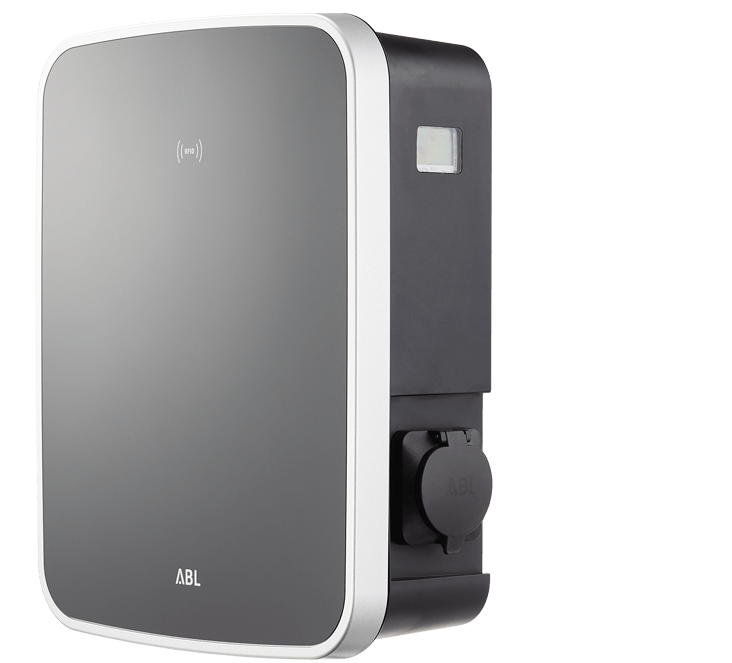

  • Wallbox eMH3 Ansicht Halbprofil Seite rechts mit Steckdose und Display | ABL eMobility
  • Wallbox eMH3 Ansicht 6 Front rechts | ABL eMobility
  • Wallbox eMH3 Ansicht 5 Front rechts | ABL eMobility
  • Wallbox eMH3 Ansicht 4 Front rechts | ABL eMobility
  • Wallbox eMH3 Ansicht 3 Front rechts | ABL eMobility
  • Wallbox eMH3 Ansicht 2 Front rechts | ABL eMobility
  • Wallbox eMH3 Ansicht 1 Front rechts | ABL eMobility

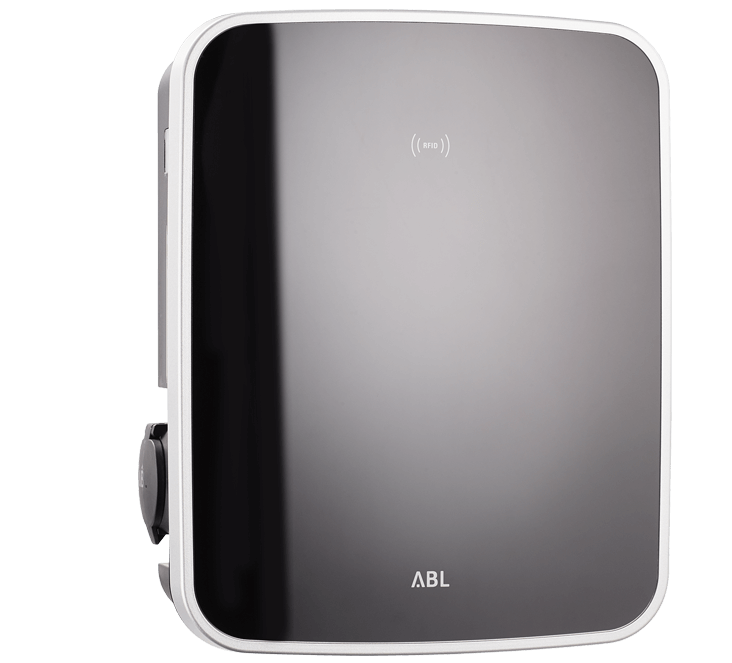

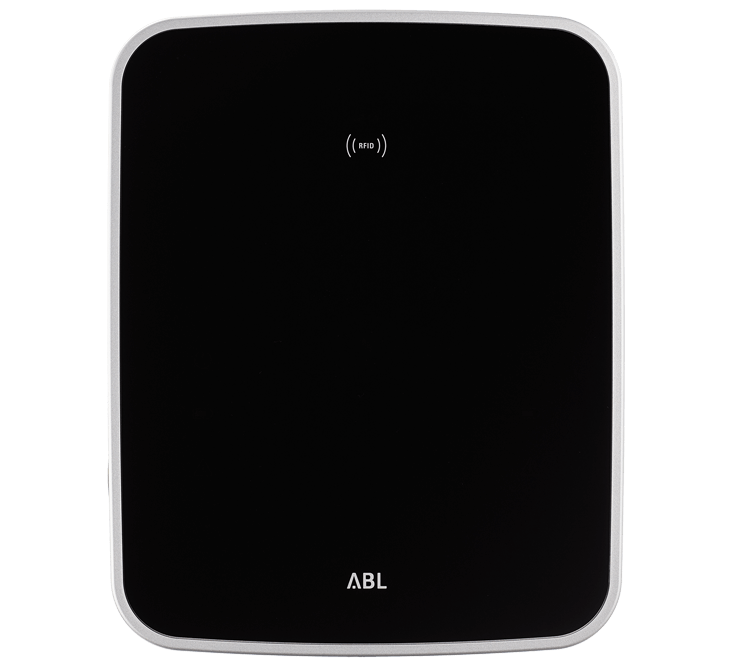

  • Wallbox eMH3 Ansicht 1 Front | ABL eMobility

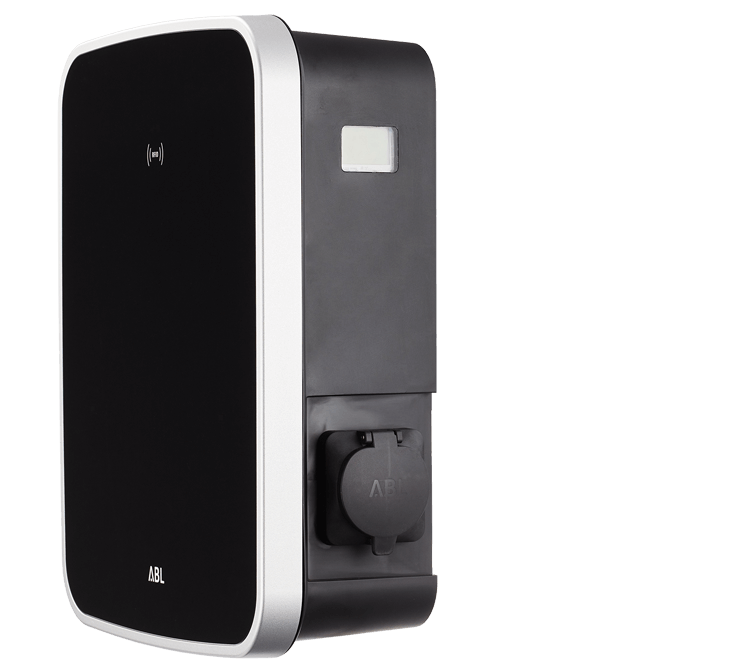

  • Wallbox eMH3 Ansicht 5 Front links | ABL eMobility
  • Wallbox eMH3 Ansicht 4 Front links | ABL eMobility
  • Wallbox eMH3 Ansicht 3 Front links | ABL eMobility
  • Wallbox eMH3 Ansicht 2 Front links | ABL eMobility
  • Wallbox eMH3 Ansicht 1 Front links | ABL eMobility

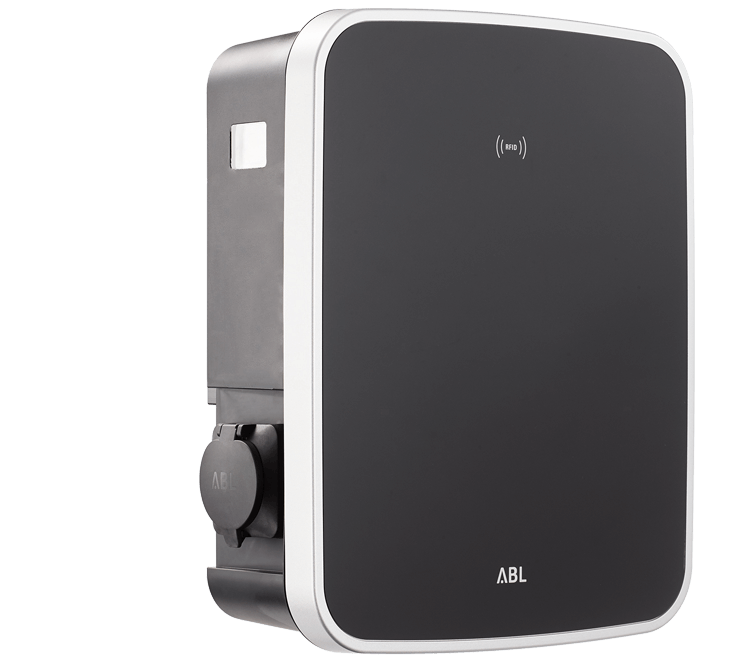

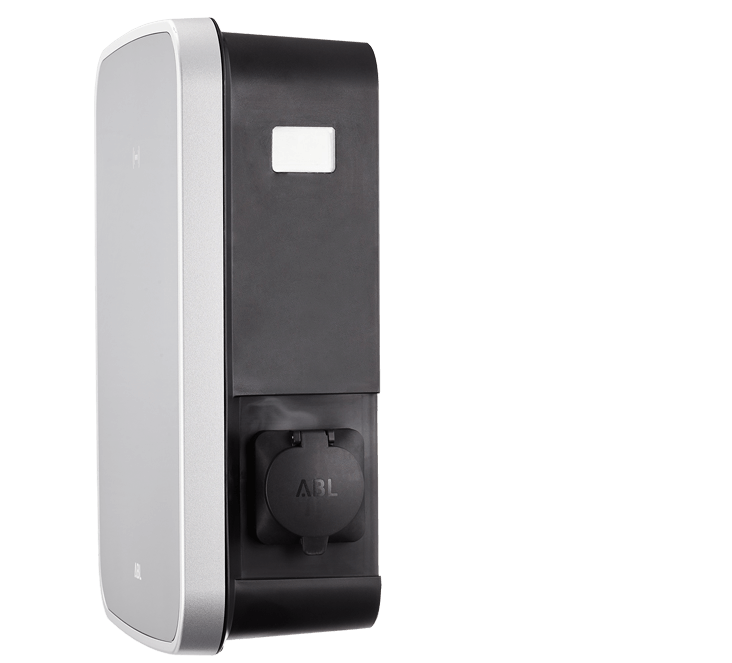

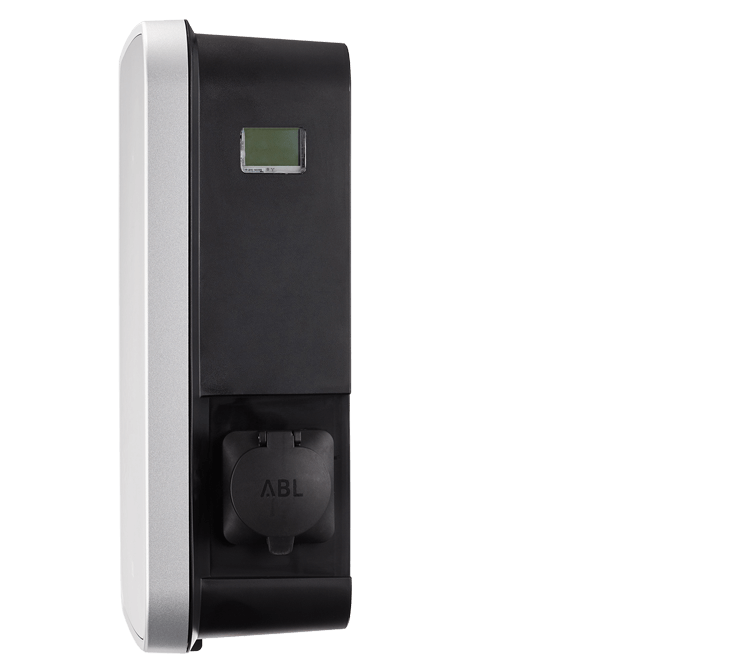

  • Wallbox eMH3 Ansicht Halbprofil Seite links mit Steckdose und Display | ABL eMobility
  • Wallbox eMH3 Ansicht 6 Seite links mit Steckdose und Display | ABL eMobility
  • Wallbox eMH3 Ansicht 5 Seite links mit Steckdose und Display | ABL eMobility
  • Wallbox eMH3 Ansicht 4 Seite links mit Steckdose und Display | ABL eMobility
  • Wallbox eMH3 Ansicht 3 Seite links mit Steckdose und Display | ABL eMobility
  • Wallbox eMH3 Ansicht 2 Seite links mit Steckdose und Display | ABL eMobility
  • Wallbox eMH3 Ansicht 1 Seite links mit Steckdose und Display | ABL eMobility

Wallbox eMH3

Double
power

A Wallbox with two charging points - for all applications

Wallbox eMH3 mit dekorativen Ovalen mit Mann und Straße bei Nacht | ABL

Wallbox eMH3

Double
power

A Wallbox with two charging points - for all applications

The smart twin wallbox with billing, load management and remote software updating

The Wallbox eMH3 is the ideal solution for multiple unit installations on company or hotel parking lots. Because the Wallbox eMH3 has two charging points, multiple unit installations can be set up quickly and in a space-saving manner.

With the Wallbox eMH3, loads can be controlled and, in conjunction with a backend, billing by kWh can be carried out accurately. We also offer the wallbox in compliance with German weights and measures legislation.



eMH3 – Quick Facts

Elegant design

2 charge points

Preconfigured and ready to install

Integrated temperature monitoring

Weatherproof

Low stand-by energy consumption

Lookbook

Wallbox eMH3 on company car parking lot

Wallbox eMH3 on company car parking lot

Wallbox eMH3 on stele on private parking lot

Wallbox eMH3 on stele on private parking lot

Honefoss loading park

Honefoss loading park, Norway with 32 loading points

Parking lot at the golf club

Parking lot at the golf club

Trumpf AG parking garage

TRUMPF AG employee parking garage with 86 loading points

Wallbox eMH3 on company car parking lot

Wallbox eMH3 on company car parking lot

Wallbox eMH3 on stele on private parking lot

Wallbox eMH3 on stele on private parking lot

Honefoss loading park

Honefoss loading park, Norway with 32 loading points

Parking lot at the golf club

Parking lot at the golf club

Trumpf AG parking garage

TRUMPF AG employee parking garage with 86 loading points

Technical data

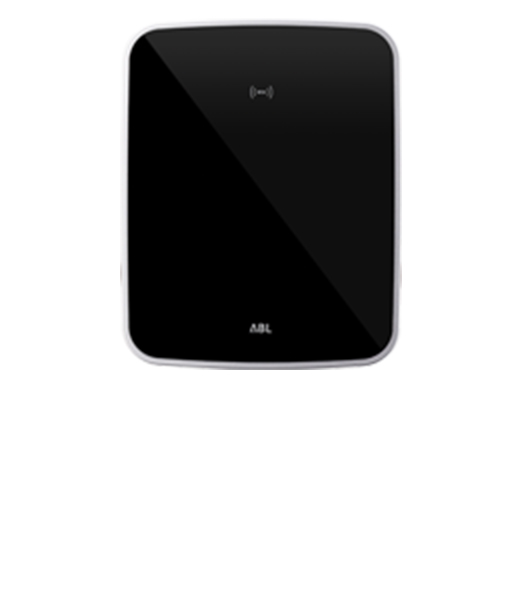

Wallbox eMH3 with charging socket

eMH3

with charging socket

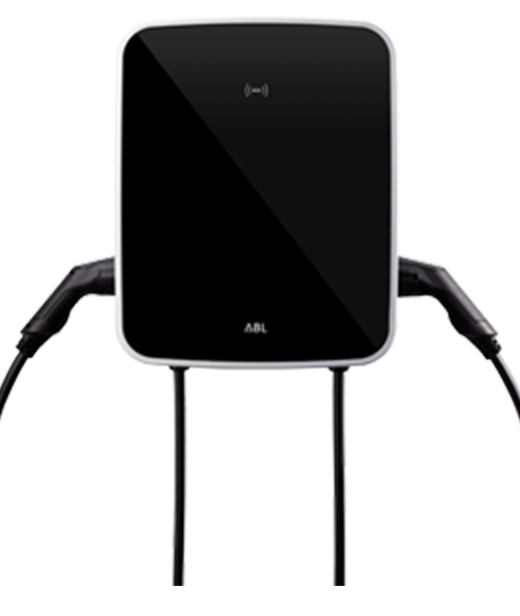

Wallbox eMH3 with charging cable

eMH3

with charging cable

All Wallboxes eMH3 have:

Load management CCMS

Distributes the available rated current among both charging points.

RFID

RFID radio frequency identification device.
Access control using contactless transponder cards.

Access control only possible in conjunction with a backend.

DC residual current monitoring & RCCB type A

The combination of DC residual current module and type A FI offers a complete solution. As a result, type B FI or type EV FI become superfluous. If DC fault currents are detected in the charging circuit, charging is interrupted for 30 seconds. After this time has passed, the wallbox restarts automatically.

Phase current measurement

The integrated phase current measurement module detects asymmetries between individual phases in all Wallboxes connected to 3-phase power.

Welding Detection

Welding detection is covered by hardware technology.

Integrated temperature monitoring

Integrated temperature monitoring protects the eMH1 Wallbox from overheating. Should the temperature exceed the limit, it reduces the charging output of the Wallbox or switches it off completely. If the temperature drops again, the eMH3 Wallbox automatically switches back to full charging output.

Adjustable charging current via configuration sofrtware

The charging current range can be selected in 1 A increments via software.


WALLBOX eMH3 Twin

For backend and load management applications



 Stand-AloneControllerExtender
Backend application OCPP*   yes yes yes yes yes
Charging cable type 2 (approx. 6 m)     ja   ja
Charging socket type 2 yes yes   yes   yes
Energy meter   yes yes yes yes yes
Charging capacity 22 kW
2 x 11 kW or 1 x 22 kW
yes yes yes yes yes
Charging capacity 44 kW 2 x 22 kW           yes
Item No.  3W2214

Data Sheet
PDF
 3W2283

Data Sheet
PDF
 3W2284

Data Sheet
PDF
3W2273**

Data Sheet
PDF
3W2274**

Data Sheet
PDF
3W4473**

Data Sheet
PDF

WALLBOX eMH3 Twin

For backend and load management applications in compliance with German calibration law

 Controller+Extender+
Backend application OCPP* ja ja ja ja
Charging cable type 2 (approx. 6 m)   ja   ja
Charging socket type 2 ja   ja
Logging Gateway ja ja ja ja
Item No. 3W2263

Data Sheet
PDF
3W2264

Data Sheet
PDF
3W2253**

Data Sheet
PDF
3W2254**

Data Sheet
PDF

WALLBOX eMH3 Single

For backend and load management applications in compliance with German calibration law

 Controller+Extender+
Backend application OCPP* ja ja ja ja
Charging cable type 2 (approx. 6 m)   ja   ja
Charging socket type 2 ja   ja
Logging Gateway ja ja ja ja
Item No. 3W2260

Data Sheet
PDF
3W2261

Data Sheet
PDF
3W2250**

Data Sheet
PDF
3W2251**

Data Sheet
PDF

*  The Integration in the client's preferred backend incurs additional costs. The controller wallbox requires a good mobile connection to communicate with the backend.
** The wallbox can also be operated individually by a reconfiguration. This requires the ID Tag RFID user cards available as accessories.

Select your own backend

With ABL and reev, switching to electromobility is a cinch! reev is offering the first simple, complete charging infrastructure package. You have a choice between Basic and Pro. How can you order your backend solution? It's very simple: Add the letter B or P to your model number. Your eMH3 Wallbox will be delivered preconfigured and including the reev backend.

Example: 3W2215B for the eMH3 Wallbox with reev Basic.

Basic (B)

reev Basic enables future-proof operation, regular software updates as well as flexible user and RFID management.

Pro (P)

reev Pro enables future-proof operation, regular software updates as well as easy monitoring and management for automated monthly accounting of employees, customers and guests.

Accessories

Pole POLEMH3 for all wallboxes eMH3

Pole

Powder-coated metal pole with LED lights and twilight sensors for all wallboxes eMH3

Prod. No. POLEMH3
Double-sided pole for mounting two wallboxes

Double-sided pole

Pole for mounting two
Wallboxes eMH3 for outdoor installation



Prod. No. POLEMH6
Weather protection roof for all wallboxes eMH3

Weather protection roof

Weather protection roof for mounting on wall or pole POLEMH3 / POLEMH6

Prod. No. WPR36
Charging cable holder for all wallboxes eMH1/eMH2/eMH3

Charging cable holder

Type 2 charging plug attachment and cable holder for all wallboxes eMH1, eMH2 and eMH3

Prod. No. CABHOLD
  • Charging cable type 2
  • Charging cable type 2 detail

Charging cable type 2

In acc. with IEC 62196-2

32 A 240/415 V AC - 3 ph
Length approx. 4 m Splash-proof IP44

Prod. No. LAK32A3
  • Charging cable type 2
  • Charging cable type 2 detail

Charging cable type 2

In acc. with IEC 62196-2

20 A 240/415 V AC - 3 ph
Length approx. 7 m splash-proof IP44



Prod. No. LAKC222
  • Adapter cable type 2 - type 1
  • Adapter cable type 2 - type 1 detail

Adapter cable type 2 - type 1

In acc. with IEC 62196-2

32 A 230 V AC - 1 ph
Length approx. 4 m Splash-proof IP44



Prod. No. LAKK2K1
LTE accessory package

LTE accessory package

With this accessory package, a wireless connection can be retrofitted
between a controller wallbox of the type eMH2/eMH3
or an external control center 1V0001/1V0002 and a backend.

Prod. No. E3BLTE1
WiFi accessory package

WiFi accessory package

This accessory package can be used to establish a wireless connection
between a controller charging station from ABL and an existing
existing WiFi network can be retrofitted.

Prod. No. E3BWLAN
Configuration Cable

Configuration Cable

All ABL charging stations can be configured with the Configuration Cable. Necessary for the configuration of single charging stations as well as controller-extender systems. The Configuration Cable is used to connect the PC to any ABL charging station

Discover eMH3

Intelligent backend for your wallbox eMH3

Together with our partner reev, we offer you an intelligent control system for your charging infrastructure, be it load management, reporting or controlling charging poles via app.

And, best of all: You only pay for what you actually use.

More on reev.com

empowered by reev

Intelligent backend for your wallbox eMH3

Together with our partner reev, we offer you an intelligent control system for your charging infrastructure, be it load management, reporting or controlling charging poles via app.

And, best of all: You only pay for what you actually use.

More on reev.com

Complete transparency

Charging procedures for company and pool vehicles, charging at the workplace, charging the company car at home or ad hoc charging procedures for guests. reev supports you with individual billing solutions.

Learn more

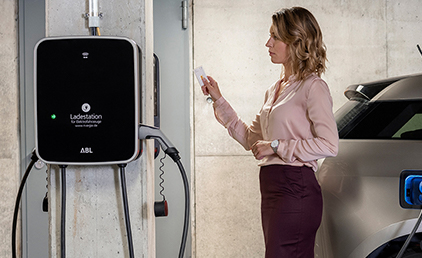

Wallbox eMH3 in parking garag

Complete transparency

Charging procedures for company and pool vehicles, charging at the workplace, charging the company car at home or ad hoc charging procedures for guests. reev supports you with individual billing solutions.

Learn more

Always there, always close

Together with our expertly trained partner network, we not only offer you professional installation and commissioning services for your eMH3 Wallbox, we can also be on site at any time in the event of malfunctions or maintenance issues.

Installation graphic

Always there, always close

Together with our expertly trained partner network, we not only offer you professional installation and commissioning services for your eMH3 Wallbox, we can also be on site at any time in the event of malfunctions or maintenance issues.
